Features
Enhanced features that makes it easy to stay connected with family and friends.
Global cellular access
(+NB-IoT & LTE-M)
Mini Size
Small, light (53g) and portable.
SOS Alarm
One button to activate SOS alarm
discreetly.
Voice Prompts
Voice broadcast of alarms and
important messages.
Fall Alarm
Highly sensitive and accurate
fall detection.
Speaker & Microphone
Excellent voice quality with adjustable
speaker and microphone
Live Tracking
Automatic GPS/WiFi/ Beacon/LBS location
updates every 10 seconds upon SOS button activation.
Medication Reminder
Prompts & reminders for critical
Home WiFi
Connects securely to home Wi-Fi to send
alerts seamlessly.
Two-way Calling
Enabled to call-out or receive emergency
calls from authorized contacts.
Waterproof
Waterproof IP67.
FOTA
Software upgrades & updates
over-the-air

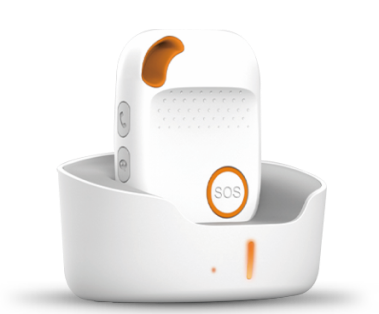

Charging Base
- You simply drop your device into the charging base and walk away
- The charging base built in Bluetooth 5.0 to connect with EV-04
- One SOS button for emergency call
Home Beacon
The beacon is a tiny wireless device broadcasting BLE signal 7/24.
Designed for indoor location via BLE connection between Eview EV-04 and beacon

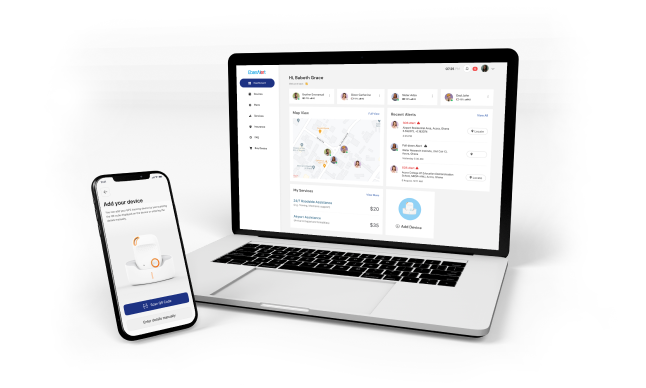

Web+IOS/Android APP
The EV-04 allows you to track the device and receive alarms
Users and caregivers can also check the battery level and receive alerts when the device battery needs to be charged
Rebranding accepted, Quickly start tracking business at a very low investment
TTS Voice Tech
Freely switch between 10+ languages—Check if your language is on the list!.
Stay safe and
secured for a happy life.
Sustainably developed with enhanced services and
crafted with passion and love for smart people.
Elderly
Patients
Lone Worker

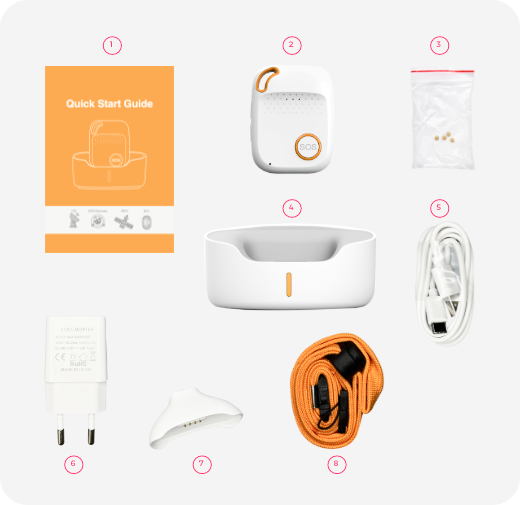

What's inside the powerful
smart package
- 1. Quick start guide
- 2. Device
- 3. Dust Plug
- 4. Charging Base
- 5. USB charging cable
- 6. Charger
- 7. Magnetic attraction line
- 8. Breakaway lanyard
General Specification

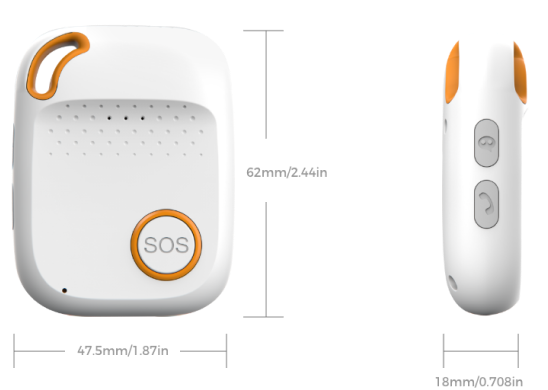

Dimension:
61mm * 44mm * 16mm
Weight:
35g
Charging voltage:
5V DC
Backup battery:
Rechargeable, 3.7V, 850mAh (Li-Polymer)
Operating Temperature:
-30°C to +70°C for storage
Battery Life:
Up to 48 hours under normal environmental conditions
Water Resistance:
Follow the IPX6 Satandard
Weight:
35g
Charging voltage:
5V DC
Hardware Specification
Sensors:
Built in motion sensor Built in vibrator sensor
SIM card:
Micro SIM card, Embedded SIM accepted
Flash Memory:
Built in 1MB memory
Normal current consumption:
30~50mAh
Sleep current consumption:
5~10mAh (GPS off)
GSM/WCDMA Specification
Sensors:
Built in motion sensor Built in vibrator sensor
SIM card:
Micro SIM card, Embedded SIM accepted
Flash Memory:
Built in 1MB memory
Normal current consumption:
30~50mAh
Sleep current consumption:
5~10mAh (GPS off)
GPS Specification
Sensors:
Built in motion sensor Built in vibrator sensor
SIM card:
Micro SIM card, Embedded SIM accepted
Flash Memory:
Built in 1MB memory
Normal current consumption:
30~50mAh
Sleep current consumption:
5~10mAh (GPS off)
